Address

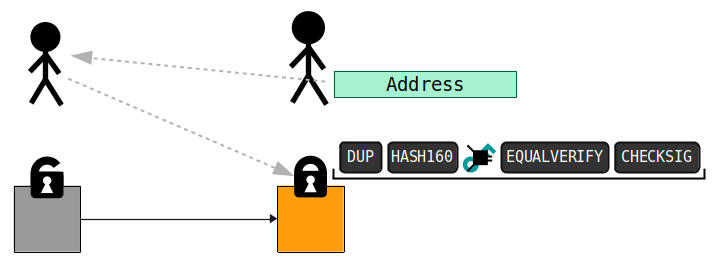

An address represents a specific type locking script to be placed on some bitcoins.

It's basically a user-friendly encoding of either a public key hash or a script hash.

So when you give someone an address, you're asking them to lock up your bitcoins to a specific script pattern using the public key hash or script hash contained inside the address.

Usage

How are addresses used in Bitcoin?

Addresses are used when you want to send bitcoins to someone using a bitcoin wallet.

When you make a transaction using a bitcoin wallet, the wallet will decode the address to determine the type of locking script pattern to place on the output, and extract the public key hash or script hash and place that inside the ScriptPubKey.

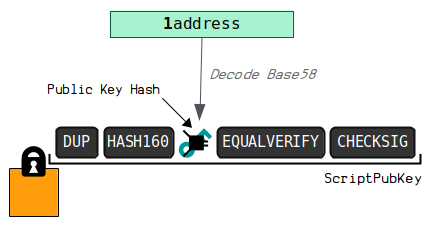

For example, a 1address contains a public key hash and corresponds to a P2PKH locking script:

So addresses themselves do not appear inside the raw data in the blockchain – they are simply a user-friendly alternative to sending each other raw locking scripts.

Types

What are the different types of bitcoin addresses?

Different types of addresses correspond to different patterns of standard locking scripts.

• P2PKH
• P2SH
• P2WPKH
• P2WSH

Not all standard locking scripts have their own address. Only the most-commonly used locking scripts are assigned their own address format.

Do not use any of the addresses below. These are just examples, and you do not have the private key to be able to unlock any bitcoins sent to these addresses.

P2PKH

Base58

OP_DUP
OP_HASH160
OP_PUSHBYTES_20
636d3436ed007d7ea05f8788f9f62281862197fc
OP_EQUALVERIFY
OP_CHECKSIG

76a914636d3436ed007d7ea05f8788f9f62281862197fc88ac

A 1address contains a public key hash and corresponds to a P2PKH locking script.

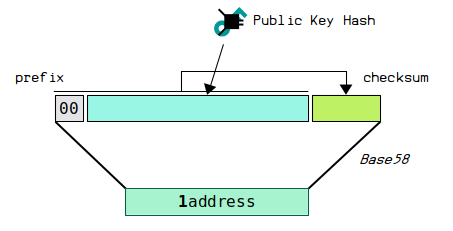

The address is a Base58Check encoding of the public key hash. This also includes a version byte prefix of 00 to force the first character of the address to be a 1, which helps distinguish it from a similar-looking P2SH address.

These addresses are case-sensitive.

P2SH

Base58

OP_HASH160
OP_PUSHBYTES_20
ebbf7e18f391a960eb23e2a9a5cf6b6df955dfc0
OP_EQUAL

a914ebbf7e18f391a960eb23e2a9a5cf6b6df955dfc087

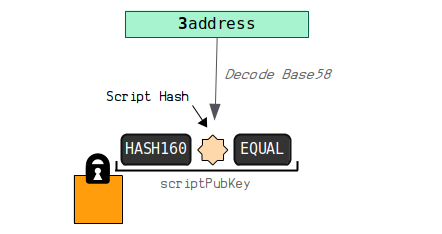

A 3address contains a script hash and corresponds to a P2SH locking script.

The address is a Base58Check encoding of the 20-byte script hash. This also includes a version byte prefix of 05 to force the first character of the address to be a 3, which helps distinguish it from a similar-looking P2PKH address.

These addresses are case-sensitive.

P2WPHK

Bech32

OP_0
OP_PUSHBYTES_20
3bf797ecab3eff05dfacd193461a1eebbc059824

00143bf797ecab3eff05dfacd193461a1eebbc059824

A 42-character bc1address contains a public key hash and corresponds to a P2WPKH locking script.

The address is a Bech32 encoding of the full hex ScriptPubKey (which contains the public key hash). The address is always 42 characters in length, which helps to distinguish it from a similar-looking P2WSH address.

P2WSH

Bech32

OP_0
OP_PUSHBYTES_32
8ae402565ad1848b60fb46b1a0160733bda6ca79fc4ec731e7091d4026947b2d

00208ae402565ad1848b60fb46b1a0160733bda6ca79fc4ec731e7091d4026947b2d

A 62-character bc1address contains a script hash and corresponds to a P2WSH locking script.

The address is a Bech32 encoding of the full hex ScriptPubKey (which contains the 32-byte script hash). The address is always 62 characters in length, which helps to distinguish it from a similar-looking P2WPKH address.

Purpose

Why do we use addresses in Bitcoin?

An address is a more convenient alternative to using raw locking scripts.

We could just send other people a complete locking script every time we want someone to "send" us some bitcoins, but this would be cumbersome, as the scripts would be unwieldy and mistakes are more likely to be made.

For example, if I wanted someone to send me some bitcoins, I could give them this complete locking script for them to use:

76a91404a621a724b8e064809d8fb22a65c2d37d01a01888ac

Alternatively, I could just give them this address instead:

1RainRzqJtJxHTngafpCejDLfYq2y4KBc

They both achieve the same result, but the address is shorter, more obvious, and easier to share.

Benefits

What are the features of bitcoin addresses?

There are a few benefits to using an address over a raw locking script:

1. Error Detection. An address has a checksum built-in, which allows you to detect errors if the address has been input incorrectly, which helps to prevent you from sending bitcoins to an invalid address and losing the coins forever. This is the biggest advantage to using addresses, in my opinion.
2. More Convenient. An address is shorter than a raw locking script and contains human-friendly characters (i.e. Base58, Bech32). This makes them easier to write down or share over the phone. It's not massively easier, but it is a slight improvement.
3. Easily Identifiable. Addresses can be easily identified due to having standard character sets and structures. This helps you distinguish an address over other types of bitcoin data. Furthermore, different types of address correspond to different types of locking script, so wallets (and humans, with some practice) can determine the type of lock that will be placed on an output by simply looking at the address.

So again, an address is simply a user-friendly alternative to using raw locking scripts when we want to send or receive bitcoins.

History

Addresses have always been a part of Bitcoin.

Base58 Addresses

2009 - present

The first 1addresses were designed by Satoshi for use with P2PKH locking scripts. Satoshi wanted to have a way for people to easily send and receive bitcoins, so they designed an address format that is the Base58check encoding of a public key hash. These always start with a 1.

Satoshi chose to encode a public key hash as opposed to a raw public key to create shorter addresses.

This style of Base58 format for addresses was continued with the introduction of 3addresses by Gavin Andresen in 2012 for use with P2SH locking scripts. These use the exact same Base58, but they contain a script hash, along with a 05 prefix to change the leading character of the address to a 3.

These are the "old-school" style of addresses, but they can still be used today.

Bech32 Addresses

2016 - present

The new Bech32 address format was introduced in the Segregated Witness upgrade of 2016. It was designed by Pieter Wuille and Gregory Maxwell (YouTube Video).

The Bech32 address format improves upon the Base58 address format by using an improved checksum algorithm, and uses a case-insensitive set of 32 characters.

This address format was introduced for the new P2WPKH and P2WSH locking scripts. These work in the essentially same way as the original P2PKH and P2SH locking scripts they replace, but they use the Witness field instead of the ScriptSig field for unlocking.

The Witness field takes up less space inside a block than the ScriptSig, so transactions that spend these new P2WPKH and P2WSH scripts pay comparatively less in transaction fees.

These are the "modern" style of addresses and are preferable over the old-school Base58 addresses.

Summary

I've said it many times already, but one more time for good measure: an address is just a user-friendly encoding of a locking script.

At first, you might think that an address is just an encoding of a public key, which is technically true to some degree, but to be more precise it's actually representing an instruction about the type and the contents of the locking script to be placed on an output.

This is because addresses can contain an encoding of a script hash or a public key hash, so they're not limited to locking outputs to public keys only.

If you're constructing raw transactions by hand then there isn't any need to use addresses, as they're not used internally in Bitcoin and do not appear in the blockchain. Instead, addresses are designed to be used externally for users when sending bitcoins via bitcoin wallets.

Nonetheless, it's good to get to grips with the different types of addresses and what they mean.
