Derivation Paths

BIP 44, BIP 49, BIP 84

A derivation path provides the location of keys (and addresses) in an HD wallet.

The cool thing about extended keys is that they can derive children, and these child keys can derive more children, and so on. This allows you to create a tree of extended keys, with each key having its own unique derivation path from the master key.

You can derive keys in any way you want. But to help with compatibility between wallets, we have a set structure for how we derive keys for use in a hierarchical deterministic wallet.

The most common derivation paths used in Bitcoin are:

• BIP 44: m/44'/0'/0' (1addresses)
• BIP 49: m/49'/0'/0' (3addresses)
• BIP 84: m/84'/0'/0' (bc1qaddresses)
• BIP 86: m/86'/0'/0' (bc1paddresses)

Bitcoin wallets use common derivation paths for deriving new addresses. This helps with compatibility and the recovery of keys between different wallets.

tool-681ec2a4ed0c6

Derivation Paths

Derive multiple private keys and addresses from a mnemonic sentence or seed using a specified derivation path.

Generate Random

Mnemonic Sentence + Passphrase

Mnemonic Sentence

0 words Passphrase (optional) extra word

Seed

0 bytes Derivation Path

Starting with m/, enter a full derivation path to a specific child key. For example, derivation paths are often shortened to m/44'/0'/0', but that assumes you want to see the first key in the receiving section, which is m/44'/0'/0'/0/0. In other words, you may want to add an /0/0 to the base path you get from a wallet to retrieve the addresses you expect.

Type BIP 32 BIP 44 BIP 49 BIP 84 BIP 86 Custom

m / purpose' / coin type' / account' / receiving or change / index

Keys and Addresses

Settings

Path Extended Private Key Private Key WIF Public Key Address

5 10 20 50 100 Rows

Never enter your seed into a website, or use a seed generated by a website. Websites can easily save the seed and use it to steal all your bitcoins.

0 secs

Notation

What does a derivation path mean?

First, we have a basic notation for describing the derivation path for a specific extended private key in an HD wallet.

For example:

m/0/1/3'

• The slashes / indicate a new level in the tree (a new child).
• The numbers (e.g. 0, 1, 3') indicate the index number of the child from the parent.
• The ' (or h) indicates a hardened child (starting at index number 2147483648).

You can derive up to 4,294,967,296 (just over 4 billion) children from a single extended key. The first half are for normal children, and the second half are for hardened children.

• Normal Children (0 to 2147483647) – These children have corresponding extended public keys that can be used to generate public keys independently without generating the private keys at the same time.
• Hardened Children (2147483648 to 4294967295) – These do not have the same ability as normal children. You can only generate the private keys and public keys from the extended private key.

The ' syntax saves on having to write the full index numbers for hardened children. For example, 3' means index 2147483651 (or 2147483648 + 3).

Wallet Structure

To help with consistency between wallets, BIP 44 introduced the following structure for HD wallets:

m / purpose' / coin_type' / account' / change / index

m: Master

This is the master extended key, which is the first extended private key at the top of the HD wallet tree.

All derivation paths start with an m.

This master extended key is created from the seed.

m/44': Purpose (hardened)

The first level specifies the upcoming wallet structure.

There are three schemes currently being used by wallets:

• BIP 44
• BIP 49
• BIP 84
• BIP 86

This number reflects the number of the BIP (Bitcoin Improvement Proposal).

m/44'/0': Coin Type (hardened)

The second level indicates the specific cryptocurrency the keys will be used for.

Different cryptocurrencies can use the same private keys and public keys. So instead of having separate seeds for different currencies (or using the same public keys on different chains), we can use the same seed with different derivation paths instead.

0' = Bitcoin
1' = Bitcoin (Testnet)
2' = Litecoin
3' = Dogecoin
...

Full list: https://github.com/satoshilabs/slips/blob/master/slip-0044.md

This is useful in hardware wallets (e.g. Trezor), where you can have a single seed and use it for holding a variety of different coins.

m/44'/0'/0': Account (hardened)

The third level allows you to create separate accounts for funds.

For example, you can create separate "pots" from the same seed, and the coins in these separate accounts will not be mixed.

The default account index is 0'.

You could obviously create many different accounts at random indexes at this level. But to keep recovery simple, a wallet should create accounts in sequential order, and not create a new account if a previous one has not been used.

m/44'/0'/0'/0: Change

The fourth level separates the keys and addresses in to "Receiving" and "Change":

• Receiving = 0 - Addresses that we will give out to people to receive payments.
• Change = 1 - Addresses we use for sending change back to ourselves when we make transactions.

This allows you to differentiate the coins that have arrived from external payments from the coins that you have sent back to yourself as change.

These are normal children. This means they have corresponding extended public keys, which can be used to derive the public keys independently for the children below.

m/44'/0'/0'/0/0: Index

The fifth level contains the keys that you actually use for sending and receiving payments in the wallet.

So every time you generate a new address to receive a payment, you're incrementing the index for the child key at this level (starting from 0).

So the actual keys used for addresses are in the lowest level of the key tree; the first few levels in the path are just used to structure the hierarchical deterministic wallet in a functional way.

You don't actually need to use extended keys at this level because you don't need to derive further children. You use the child keys at this level for their basic private keys and public keys.

Derivation Paths

What derivation paths do bitcoin wallets use?

Here are the most common derivation paths used by bitcoin wallets.

BIP 32: m/0'/0/0 (deprecated)

This is the original derivation path specification from BIP 32.

It uses the first child for accounts, and the next child below for separating external (receiving) and internal (change) addresses. The children of these are used for their actual private keys and public keys to create addresses.

This is a simple derivation path, but it doesn't allow for the option of creating alternative derivation path schemes.

This is where BIP 44, BIP 49, and BIP 84 come in…

BIP 44: m/44'/0'/0'/0/0

• Legacy (P2PKH)
• 1addresses

BIP 44 builds upon the original BIP 32 scheme to include a purpose (which is like a version number to identify the upcoming scheme), as well as a coin type so that the same seed can be used to generate keys for different cryptocurrencies.

The first level of 44' indicates that the wallet uses 1addresses (P2PKH).

BIP 49: m/49'/0'/0'/0/0

• Nested Segwit (P2SH-P2WPKH)
• 3addresses

BIP 49 uses the same structure as BIP 44.

The first level of 49' indicates that the wallet uses 3addresses (P2WPKH wrapped in P2SH).

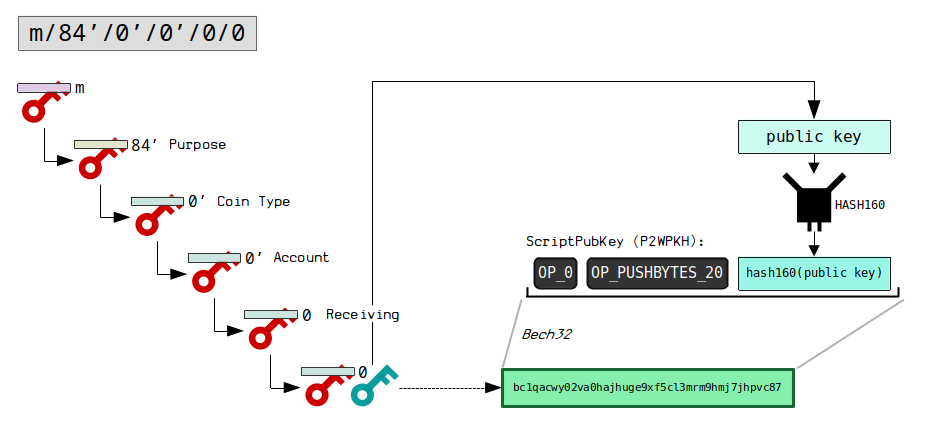

BIP 84: m/84'/0'/0'/0/0

• Native Segwit (P2WPKH)
• bc1qaddresses

BIP 84 uses the same structure as BIP 44.

The first level of 84' indicates that the wallet uses bc1qaddresses (P2WPKH).

BIP 86: m/86'/0'/0'/0/0

• Taproot (P2TR)
• bc1paddresses

BIP 86 uses the same structure as BIP 44.

The first level of 86' indicates that the wallet uses bc1paddresses (P2TR).

The BIP 86 specification is used to create key path spend-only P2TR outputs. Therefore it does not include any script path spend conditions (which means the merkle root is always empty).

Gap Limit

The gap limit refers to how many unused addresses a wallet will scan through before it stops looking for a balance at further addresses.

The standard gap limit is 20.

So when recovering an HD wallet from a seed, the wallet will start by checking for a balance on the first 20 addresses. If no balance is found at any of these addresses, the wallet will stop checking further addresses and assume that the wallet has not received any payments.

For example, if you generated your own mnemonic seed and decided to receive your first payment at an address sitting at the index m/44'/0'/0'/0/20, if you import this seed into a different wallet it will likely display a balance of zero.

This gap limit applies to all addresses in the wallet too. So if you receive a payment to the address at m/44'/0'/0'/0/5 (which is fine), but then decide to receive your next payment to an address at m/44'/0'/0'/0/26 (a gap of 21), that second payment will not get picked up if you decide to import your seed into a different wallet later on.

So basically, you should avoid leaving a gap of 20 addresses between payments.

Tips

Some general tips for working with derivation paths:

• Store the derivation path alongside your seed phrase. This will be helpful if you need to recover your coins using a different wallet at a later date. It's not essential, but it might save you from a fright if you end up restoring your wallet and find that there are no coins in it, as the wallet you're now using may be using a different derivation path by default.
• Stick with a standard derivation path. When creating a wallet, it's best to stick with one of the default derivation paths on offer. You may have the option to choose a custom one, but if you use a custom derivation path and forget it, you will have some difficulty recovering your coins later on. It does little to improve security, and it's not worth the headache it will inevitably cause.
• Don't worry if you don't know the derivation path for your current wallet. There are only a handful of standard derivation paths in common usage, so just try the most common ones when recovering your wallet later on (should you need to). The worst part will be the initial sinking feeling that you've lost your coins, but all you need to do is try a different derivation path to get your addresses back. A good wallet will allow you to use different derivation paths for your seed (e.g. Sparrow, Electrum). See walletsrecovery.org for a list of the derivation paths used by different wallets.
• Be aware of the different derivation path notations. Most bitcoin wallets just use the first 3 levels to identify the different derivation paths (e.g. m/44'/0'/0') and calculate the addresses from there. However, when using some tools (like the one on this site), to get to the actual keys and addresses in the wallet you need to specify the full derivation path (e.g. m/44'/0'/0'/0/0). So if you're not getting the right results, check the notation.
• Never enter your seed phrase into a website. As always, you should never enter your seed phrase into a website. The tool on this website is for educational and development purposes only. If you need to work on recovering a wallet using different derivation paths, use trustworthy software on your local computer (or use your own code).

Code

Here are some code snippets to show you how you can create different derivation paths from a seed.

I've used existing libraries to help keep the code simple.

require 'bitcoin' # sum gem install bitcoin-ruby

seed = "67f93560761e20617de26e0cb84f7234aaf373ed2e66295c3d7397e6d7ebe882ea396d5d293808b0defd7edd2babd4c091ad942e6a9351e6d075a29d4df872af"

# ------
# BIP 44
# ------
# Note: Hardened keys start at 2**31 (the second half of the 2**32 possible children).

m = Bitcoin::ExtKey.generate_master(seed.htb) # convert hex to binary
purpose   = m.derive(2**31+44) # m/44'
coin_type = m.derive(2**31+44).derive(2**31+0) # m/44'/0'
account   = m.derive(2**31+44).derive(2**31+0).derive(2**31+0) # m/44'/0'/0'
receiving = m.derive(2**31+44).derive(2**31+0).derive(2**31+0).derive(0) # m/44'/0'/0'/0

20.times do |i|
	puts receiving.derive(i).addr # m/44'/0'/0'/0/*
end

package main

import (
	"encoding/hex" // byte array to hex string
	"fmt"

	"github.com/btcsuite/btcd/btcutil/hdkeychain" // go get -u github.com/btcsuite/btcd/btcutil/hdkeychain
	"github.com/btcsuite/btcd/chaincfg"           // chaincfg.MainNetParams
)

func main() {

	// From Seed
	seedhex := "67f93560761e20617de26e0cb84f7234aaf373ed2e66295c3d7397e6d7ebe882ea396d5d293808b0defd7edd2babd4c091ad942e6a9351e6d075a29d4df872af"
	seed, _ := hex.DecodeString(seedhex) // hex to bytes
	// fmt.Println("seed: ", seedhex)

	// Generate Seed
	// seed, _ := hdkeychain.GenerateSeed(uint8(16))
	// fmt.Println(hex.EncodeToString(seed)) // bytes to hex

	// ------
	// BIP 44
	// ------
	// m
	m, _ := hdkeychain.NewMaster(seed, &chaincfg.MainNetParams)

	// m/44h
	purpose, _ := m.Child(hdkeychain.HardenedKeyStart + 44)

	// m/44h/0h
	coin, _ := purpose.Child(hdkeychain.HardenedKeyStart + 0)

	// m/44h/0h/0h
	account, _ := coin.Child(hdkeychain.HardenedKeyStart + 0)

	// m/44h/0h/0h/0
	receiving, _ := account.Child(0) // 0 = receiving, 1 = change

	// m/44h/0h/0h/0/*
	for i := 0; i < 20; i++ {
		index, _ := receiving.Child(uint32(i)) // takes an unsigned integer
		address, _ := index.Address(&chaincfg.MainNetParams)
		fmt.Println(address)
	}
}

Resources

• BIP 44 (Marek Palatinus, Pavol Rusnak)
• BIP 49 (Daniel Weigl)
• BIP 84 (Pavol Rusnak)
• BIP 86 (Ava Chow)


• Ian Coleman BIP39 Tool – Fantastic interactive tool for path derivation from a seed.
